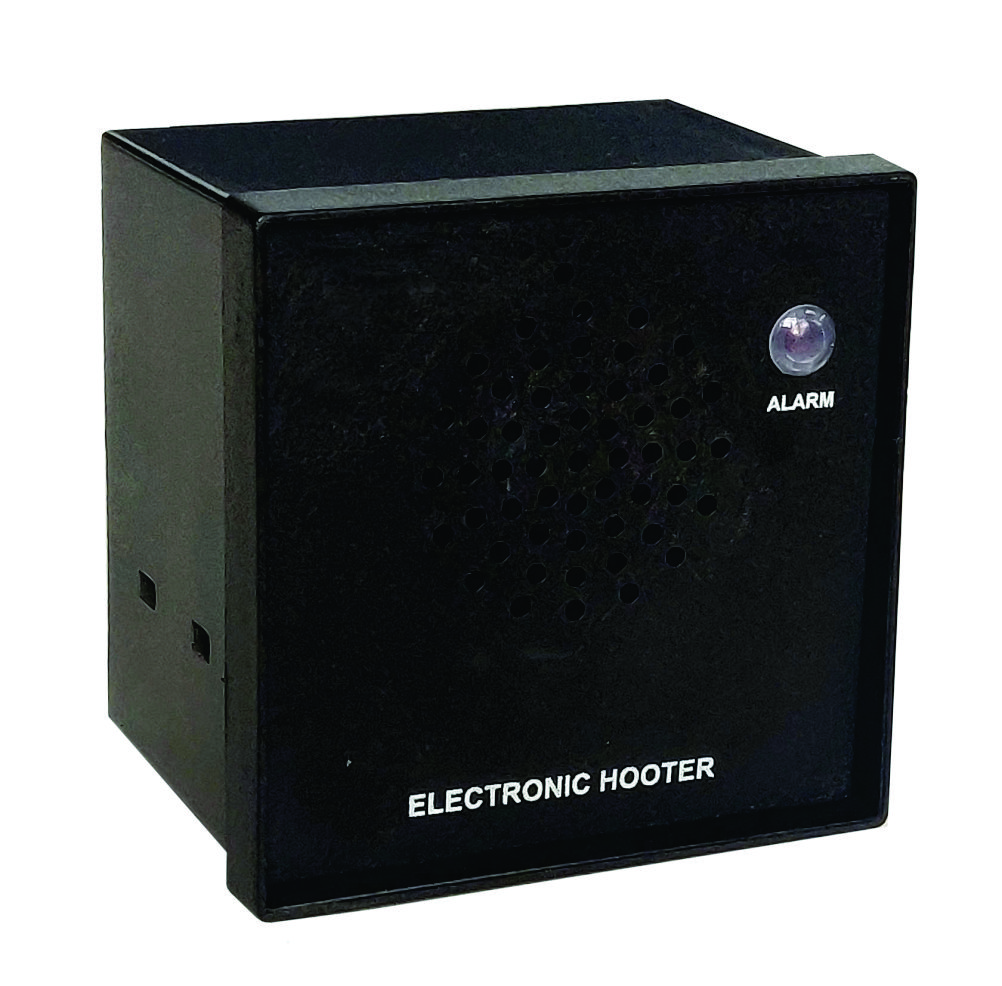

Electronic Hooter – 4 Tone

Model : HT 04 / HT 04 – A

Electronic Switches offers 4 Tone Electronic Hooter used for fault indiction on all types of machines and finds huge applications & requirements for Panel Builders, Assembly Line Automation, PLC Automation, SPM Machines.

Features

Bright LED Fault Indication
Flush mountable on Panel
Compact Size
Low Current Consumption
High Audible sound output
Available with Remote and front Acknowledge
Available in Multiple Voltage range

Features

Compact Size
Bright LED fault indication
Suitable for Panel Mounting
Low Power Consumption
High Audible Sound Output
Available in multiple voltage ranges

Product Variants

MODELS	OUTPUT	RANGE
HT 04	4 Tone Hooter	100 dB @ 1 Meter
HT 04 A	4 Tone Hooter with Acknowledge	100 dB @ 1 Meter

Specification

Operating Voltage	24, 110, 240 V AC/V DC
Voltage Variation	+/- 10% of Nominal Supply Voltage
Switch	Accept Button Front and Rear for Remote switch
Current	25mA (Max.)
Tone	Tone Continuous and Beeper
Sound Level	100 dB@ 1 meter +/- 10 dB
Insulation resistance	at 500 VDC 1.3 X 104 Mega – Ohm
Mounting	Flush Mounting
Housing	ABS Plastic
Dimensions	96 x 96 x 65mm
Cut out size	92 x 92mm

Applications

For Height based GO-NO-GO systems
Object detection on Conveyer Belts
As Safety Barriers for various machines
For Safety barrier for Sliding gate of boom barrier
For Safety applications in Paper Cutting Machines
For Level sensing in Hoppers
