Infra Red Diffuse Sensor - Plug in Connector Type
IR Diffuse dia M18 - Connector - Image 2

IR Diffuse dia M18 – Connector

Models  :

IRD 181 / 381 / 581 / 1181 – C
IRD 182 / 382 / 582 / 1182 – C
IRD 183 / 383 / 583 / 1183 – C
IRD 184 / 384 / 584 / 1184 – C

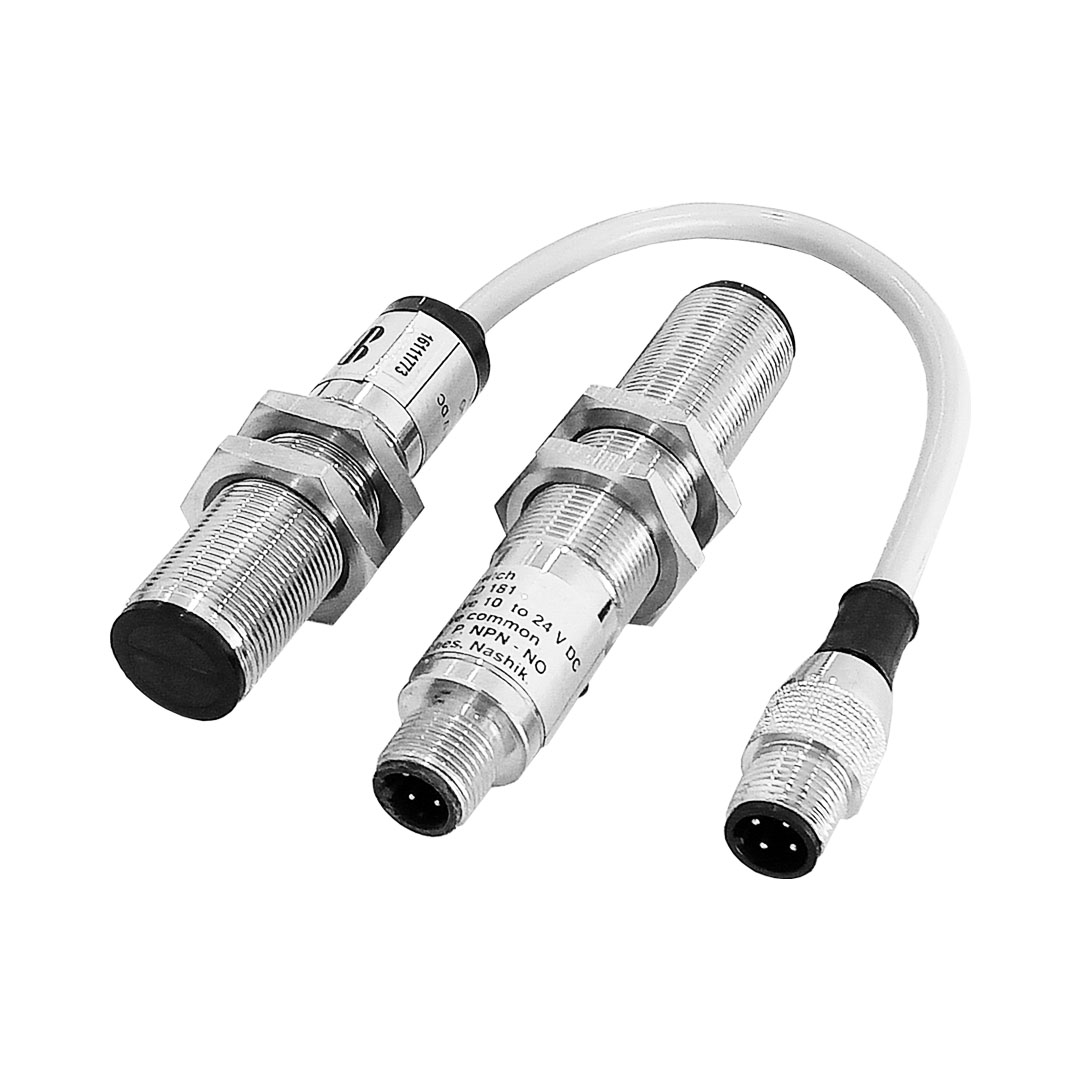

Electronic switches offers Diffuse scan sensor M 18 threaded housing design, Brass / plastic housing, front optical face, 100 / 300 / 500 / 1000 mm detection range, light/dark ON,  PNP / NPN outputs, fixed cable and also connector type.

Features

  • NPN, PNP or Both outputs
  • Multiple ranges available as required
  • LED indication for output status
  • Non Critical alignment between the Sensors
  • Available in M 18 Brass Plated Housing
  • Also available in ABS Plastic Housing
  • Product Variants
MODELS OUTPUT RANGE
IRD 181 / 182 – C
 NPN – NO or NC 100 mm (max)
IRD 183 / 184 – C
 PNP – NO or NC 100 mm (max)
IRD 381 / 382 – C
 NPN – NO or NC 300 mm (max)
IRD 383 / 384 – C
 PNP – NO or NC 300 mm (max)
IRD 501 / 502 – C
 NPN – NO or NC 500 mm (max)
IRD 503 / 504 – C
 PNP – NO or NC 500 mm (max)
IRD 1181 / 1182 – C
 NPN – NO or NC  1000 mm (max)
IRD 1183 / 1184 – C
PNP – NO or NC                     1000 mm (max)

Specifications

Power Supply 10 – 30V DC
Output PNP or NPN  and NO or NC
Sensing Range 100mm / 300mm / 500 / 1000 mm  (Range specified with white photographic paper )
No of wires 3 wire
Output Current 200mA
Protection Short Circuit / Reverse Polarity
Sensitivity Adj. Available
Housing Plated Brass / ABS Plastic
Dimensions 18 D x 80 L  mm

Applications

  • For Height based GO-NO-GO systems
  • Object detection on Conveyor Belts
  • As Safety Barriers for various machines
  • For Safety barrier for Sliding gate of boom barrier
  • For Safety applications in Paper Cutting Machines
  • For Level sensing in Hoppers
