Small Infra Red Through Beam Sensor

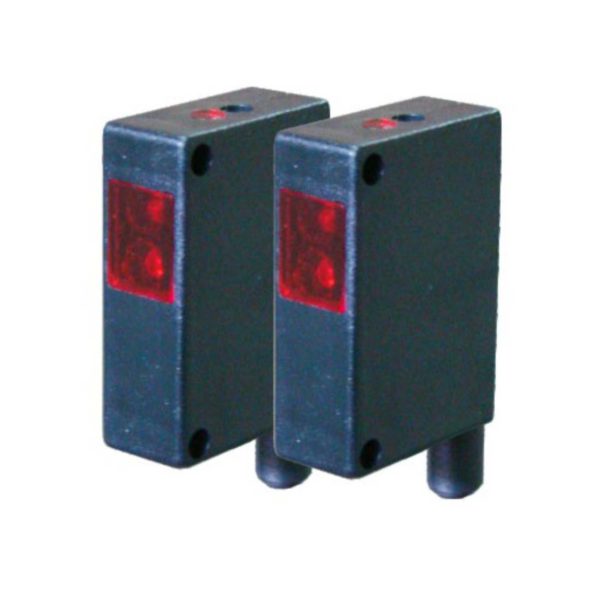

IR Through Beam Sensor – Rectangular 4028

IBX 41 /42  :  NPN – NO or NC
IBX 43 /44  :  PNP – NO or NC

Electronic Switches offers Infra Red through beam Sensor in square type with 3wires in ABS Plastic Housing for 3 mtr. range. Unit operates on power supply 10 to 30 volts DC.

Features

  • NPN, PNP or Both outputs
  • Multiple ranges available as required
  • LED indication for output status
  • Non Critical alignment between the Sensors
  • Available in M 18 Brass Plated Housing
  • Also available in ABS Plastic Housing
Category:

Description

Product Variants

MODELS OUTPUT RANGE
IRB 031 / 032 NPN – NO or NC selectable 03 Meters
IRB 033 / 034 PNP – NO or NC selectable 03 Meters
IRB 101 / 102 NPN – NO or NC selectable 10 Meters
IRB 103 / 104 PNP – NO or NC selectable 10 Meters
IRB 201 / 202 NPN – NO or NC selectable 20 Meters
IRB 203 / 204 PNP – NO or NC selectable 20 Meters
IRB 301 / 302 NPN – NO or NC selectable 30 Meters
IRB 303 / 304 PNP – NO or NC selectable 30 Meters

Specification

Power Supply 10 – 30V DC
Output PNP or NPN  and NO or NC
Sensing Range 3 mtr.(Range specified with white photographic paper )
No of wires 3 wire for Receiver and 2 wire for Transmitter
Output Current 200mA
Protection Short Circuit / Reverse Polarity
Sensitivity Adj. not available
Housing ABS Plastic
Dimensions 40 x 28 x 12mm

Applications

  • For Height based GO-NO-GO systems
  • Object detection on Conveyer Belts
  • As Safety Barriers for various machines
  • For Safety barrier for Sliding gate of boom barrier
  • For Safety applications in Paper Cutting Machines
  • For Level sensing in Hoppers
