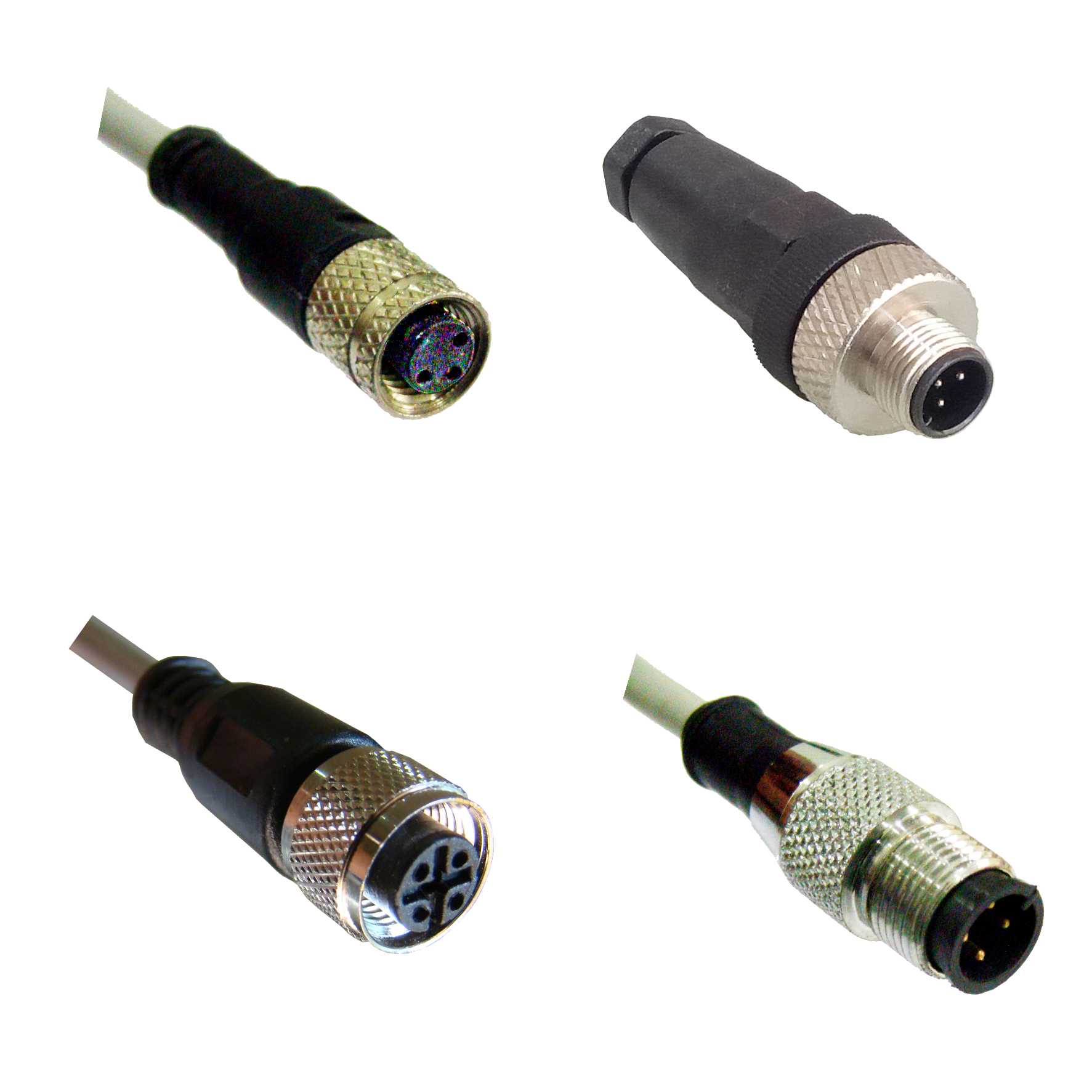

Electronic Switches offers various types of Plug-in Connectors with Molded Cable. Details are as follows.
| MODELS | TYPE | RANGE |
|---|---|---|
| M 12 FEMALE CONNECTOR – Straight Type | 4 PIN / 5 PIN | 02 / 05 / 10 Meters |
| M 12 FEMALE CONNECTOR – L Type |
4 PIN / 5 PIN | 02 / 05 / 10 Meters |
| M 12 FEMALE CONNECTOR – L Type with LED |
4 PIN | 02 / 05 / 10 Meters |
| M12 MALE CONNECTOR – Straight Type |
4 PIN | 02 / 05 / 10 Meters |
| M 12 MALE + FEMALE With Cable |
4 PIN – One side Male or Female / Other side Male or Female Straight Type or L Type ( Connector at both ends) |
02 / 05 / 10 Meters |
| M 8 FEMALE CONNECTOR – Straight Type |
3 PIN / 4 PIN |
02 / 05 / 10 Meters |
| M 8 FEMALE CONNECTOR – L Type |
3 PIN / 4 PIN |
02 / 05 / 10 Meters |
| Operating Voltage |
10 – 30 V DC |
| No of Pins | 4 Pins or 5 Pins |
| Cable core | 4 / 5 core cable |
| Diameter | M 12 / M 8 |
| Cable Material |
PVC |
| Temperature range | Up to 55 °C |
| No of Conductors |
14 Nos |
| Cable specification | 4 x 0.25 mm, high flexible lead |
| Standing Structure : | 0.34 mmSq (182 x 0.05) |
| No of Conductors | 14 |
| Diameter of Cable | 5.17 mm |
| Type | Connector with Cable |
