Pull Cord Switch

Pull Cord Switch

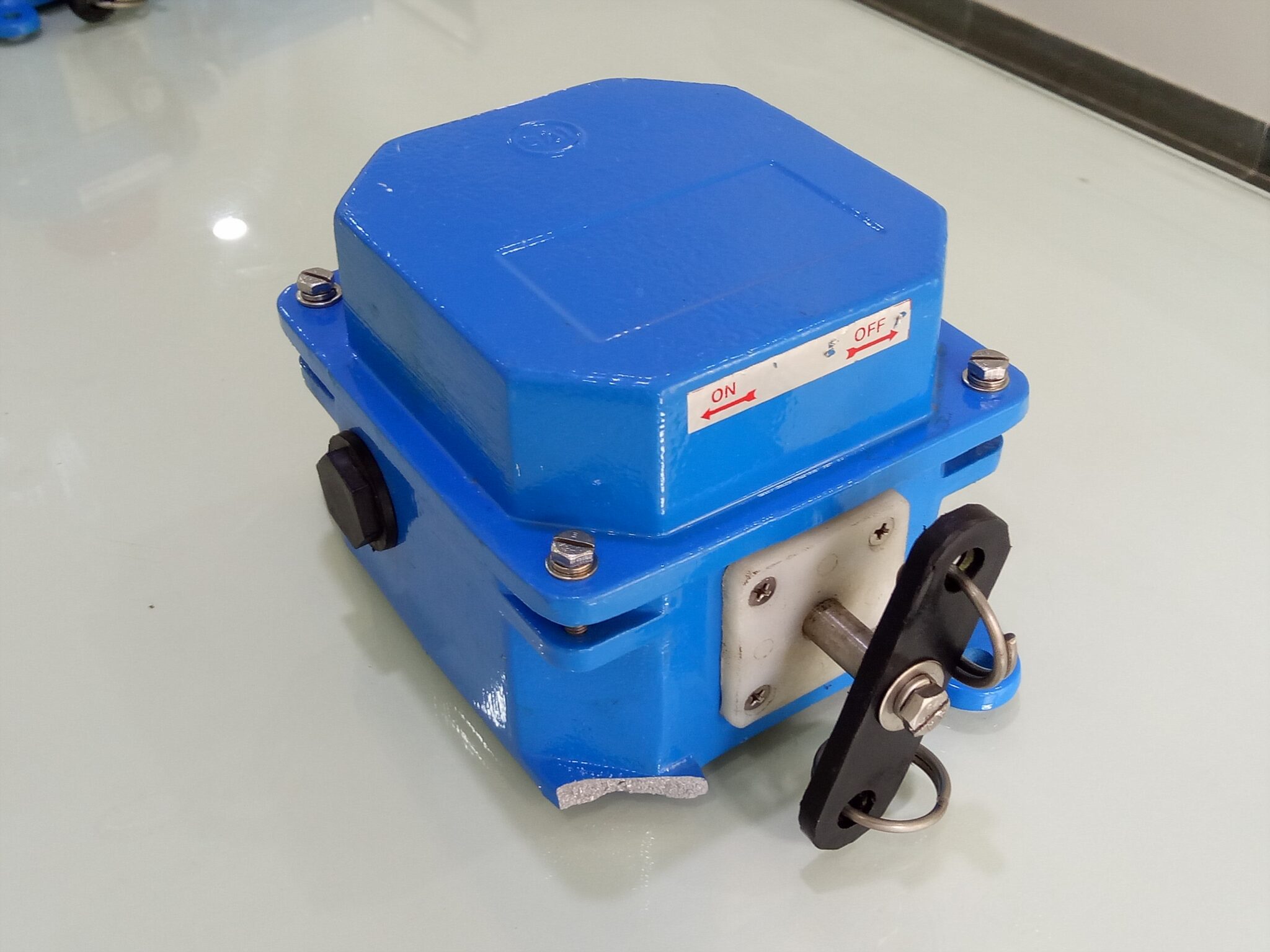

Electronic Switches offers Pull Cord Switch, used as a safety switch to stop the conveyor belt in case of an emergency. Pull cord switch is mounted on the walkway side of the conveyor belt, preferably at about very 20-25 meters. When the rope is pulled from any side, the switch get operated. One has to reset the handle to normal position manually, for the switch to reset.

Features

  • NPN, PNP or Both outputs
  • Multiple ranges available as required
  • LED indication for output status
  • Non Critical alignment between the Sensors
  • Available in M 18 Brass Plated Housing
  • Also available in ABS Plastic Housing

Product Variants

MODELS OUTPUT RANGE
IRB 031 / 032 NPN – NO or NC selectable 03 Meters
IRB 033 / 034 PNP – NO or NC selectable 03 Meters
IRB 101 / 102 NPN – NO or NC selectable 10 Meters
IRB 103 / 104 PNP – NO or NC selectable 10 Meters
IRB 201 / 202 NPN – NO or NC selectable 20 Meters
IRB 203 / 204 PNP – NO or NC selectable 20 Meters
IRB 301 / 302 NPN – NO or NC selectable 30 Meters
IRB 303 / 304 PNP – NO or NC selectable 30 Meters

Specifications

Power Supply 230V AC
Grade IP 65 Protection
Output 2 NO + 2 NC
Contact Rating 10 Amp Res. At 240 VAC
Action Toggle type
Reset Manual
Terminal Box & Mechanical flag Model available with Terminal box and mechanical flag
Cable Entry 2 Nos 19mm 3/4 inch with Plastic plug
Enclosure Cast Aluminum with Powder Coating.

Applications

  • For Height based GO-NO-GO systems
  • Object detection on Conveyer Belts
  • As Safety Barriers for various machines
  • For Safety barrier for Sliding gate of boom barrier
  • For Safety applications in Paper Cutting Machines
  • For Level sensing in Hoppers
